Savage - titanium bolt body (Short Action, Right Handed)

  • Brand: Lumley Arms
  • Product Code: SAV-BB-SHORT-RH
  • Availability: In Stock
  • $95.00


Available Options

Check distributor stock:
Coretac Solutions Check website for current stock
Tactical Works 10 in stock

Savage Centerfire bolt body for right-handed actions

Fits all short-action variants of the model 10, 11, 12, 14, and 16 (does not fit the Axis).

Designed for the shooter in pursuit of building the lightest rifle absolutely possible. If you are a Lightweight Storm, Ultralite, Ultralite Elite, or Klym owner - our completely CNC machined grade 5 titanium bolt body will shave off even more weight from these already very light rifles. We have produced the right handed 'standard' version only, however fluted and left-handed options may be available in the future.

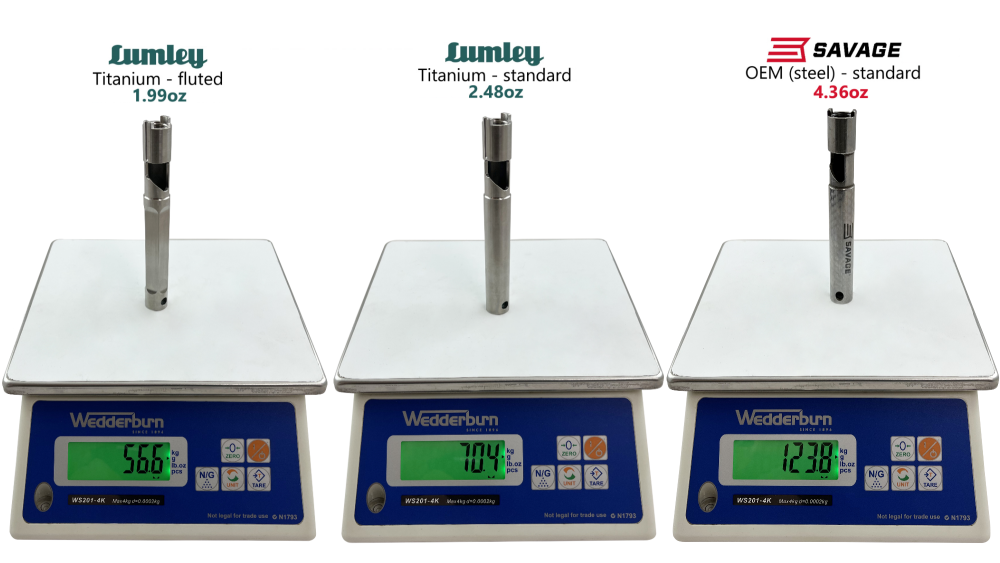

The weight difference between our titanium bolt bodies and the factory steel unit has to be handled to be appreciated. Our fluted prototype is 54% lighter than the Savage OEM steel bolt body (a saving of 2.37oz / 67.2g). When combined with our titanium bolt handles (left or right) and titanium BAS (2019+ models) or titanium bolt lift kits (pre-2019 models), substantial weight savings can be achieved. If unsure on compatibility with your particular model, please measure the length of your OEM bolt body and compare the dimensions to those in the last image of the gallery. We include several replacement front baffle washers ('wave washers') which provide necessary tension between the bolt body and the front baffle. Only one washer is required, the extras included are spares. Don't forget to apply bolt grease to the rear faces of the lugs during reassembly.

Specifications

  • Grade 5 Titanium alloy (Ti6Al4V)
  • As machined finish (0.4 μm Ra)
  • Nominal diameter: options are 0.695" (17.65mm) and 0.700" (17.78mm)
  • Weight (titanium, 5x straight flutes): 1.99oz (56.6g)
  • Weight (titanium, standard): 2.48oz (70.4g)
  • Weight (Savage OEM, fluted): 3.52oz (100.0g)
  • Weight (Savage OEM, standard): 4.36oz (123.8g)
  • 'Baffle Washer, Front' manufactured from 301 stainless steel.

Some fitting may be required

We cannot accept returns for bolt bodies that have been modified or show signs of fitting. With so many models and sub models of different vintages, we have found that the dimensions between individual Savage rifles can vary. Our bolt bodies are available in the two different diameters below:

  • 0.695" (17.65mm) - this is ideal for most receivers within factory specifications that we've measured
  • 0.700" (17.78mm) - this will be marginally larger than the ID of most receivers - gunsmith fitting will be required.
We highly recommend measuring the ID of your receiver using a bore gauge. Alternatively a pin gauge can be used, and (as of February 2024) MSC has these available in both 0.700" and 0.695". You will need at least 0.001" clearance between the bolt body and the receiver ID (i.e. your bolt body needs to be a minimum of 0.002" smaller in diameter than your receiver ID). If in doubt, selecting the smaller 0.695" bolt body is a safe option. If selecting the larger 0.700" bolt body, your receiver may need to be opened up or the bolt body will need to be turned down - both operations require a lathe.
